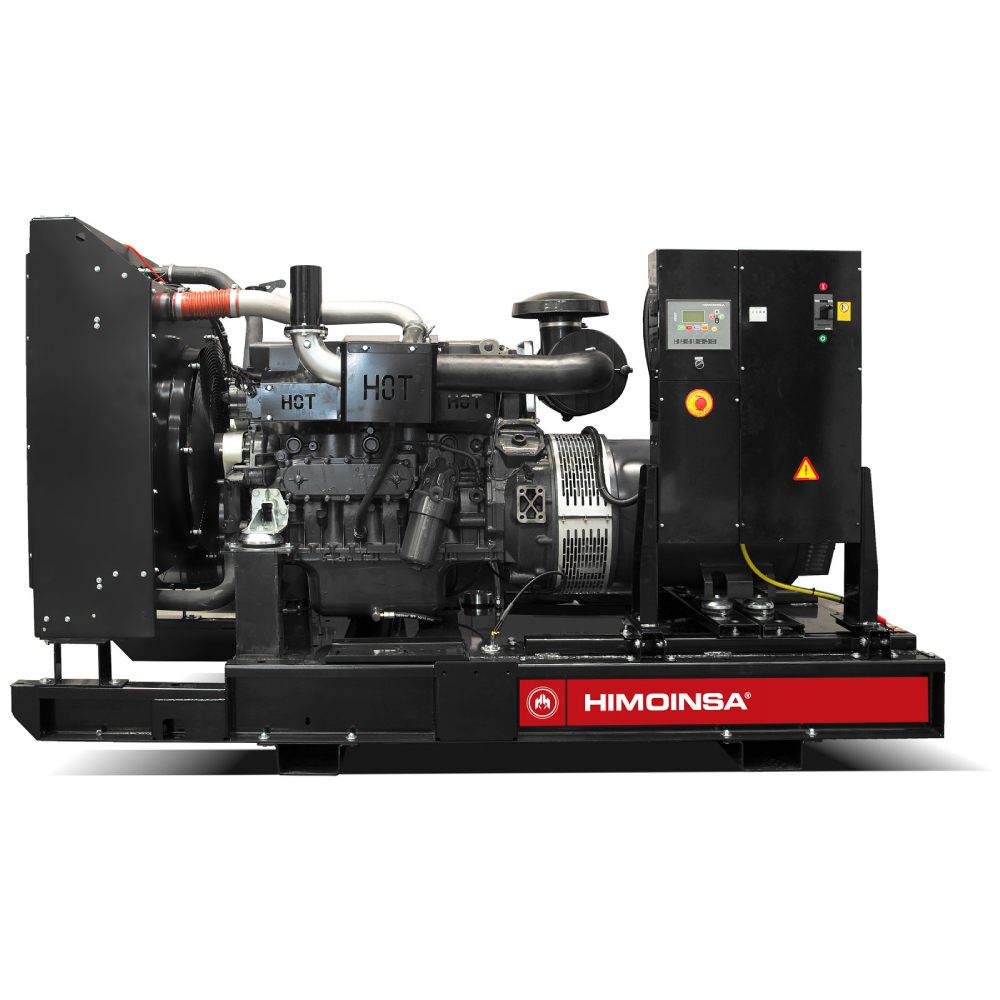

Himoinsa Generator HFW-85 T5
Himoinsa Generator HFW-85 T5

Himoinsa Generator HFW-85 T5

$0.00

Engine Make: FPT_IVECO
Engine Model: NEF45SM3
Alternator Make: Stamford
Alternator Model: UCI224G
Standy Power Rating: 89kVA
Continuous Power Output: 83kVA
Fuel Tank Size:  240L
Noise Level: dB(A)@7m 69 ± 2,4
Weight: 1568KG

Download PDF Data Sheet
Make Enquiry

About Himoinsa Products

HIMOINSA products come with quality certification ISO 9001. HIMOINSA gensets are compliant with EC mark which includes the following directives:

  • 2006/42/CE Machinery safety.
  • 2014/30/UE Electromagnetic compatibility.
  • 2014/35/UE electrical equipment designed for use within certain voltage limits
  • 2000/14/EC Sound Power level. Noise emissions outdoor equipment. (amended by 2005/88/EC)
  • 97/68/EC Emissions of gaseous and particulate pollutants.
  • EN 12100, EN 13857, EN 60204
  • Ambient conditions of reference according to ISO 8528-1:2018 normative: 1000 mbar, 25ºC, 30% relative humidity.

Additional Information

  • Steel chassis
  • Anti-vibration shock absorbers
  • Fuel tank
  • Fuel level gauge
  • External emergency stop switch

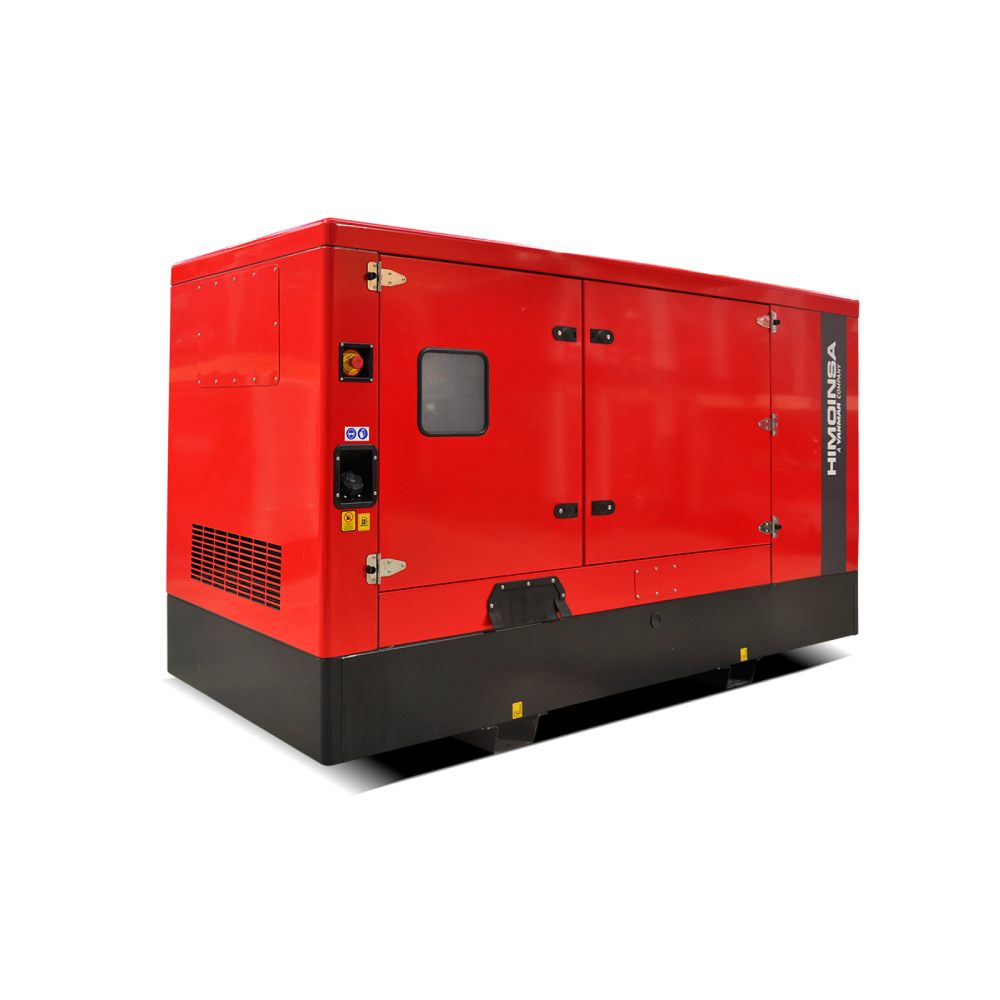

  • Bodywork made from high quality steel plate
  • High mechanical strength
  • Low noise emissions level
  • Soundproofing provided by high-density volcanic rock wool
  • Epoxy polyester powder coating
  • Full access for maintenance (water, oil and filters, no need to remove the canopy)
  • Reinforced lifting hooks for crane hoisting
  • Watertight chassis (acts as a double barrier against liquid retention)
  • Fuel tank drain plug
  • Chassis drain plug
  • Chassis ready for future mobile kit installation
  • Steel residential silencer -35db(A)
    attenuation.
  • Oil sump extraction kit
  • Versatility to assemble a high capacity
    chassis with a metallic fuel tank
  • IP Protection according to ISO
    8528-13:2016
  • 3 way valve for external fuel supply (available in
    1/2" and 3/8" fittings) (Optional)
  • Fuel transfer pump (Optional)
